SSF
New
Special Sheet Floating

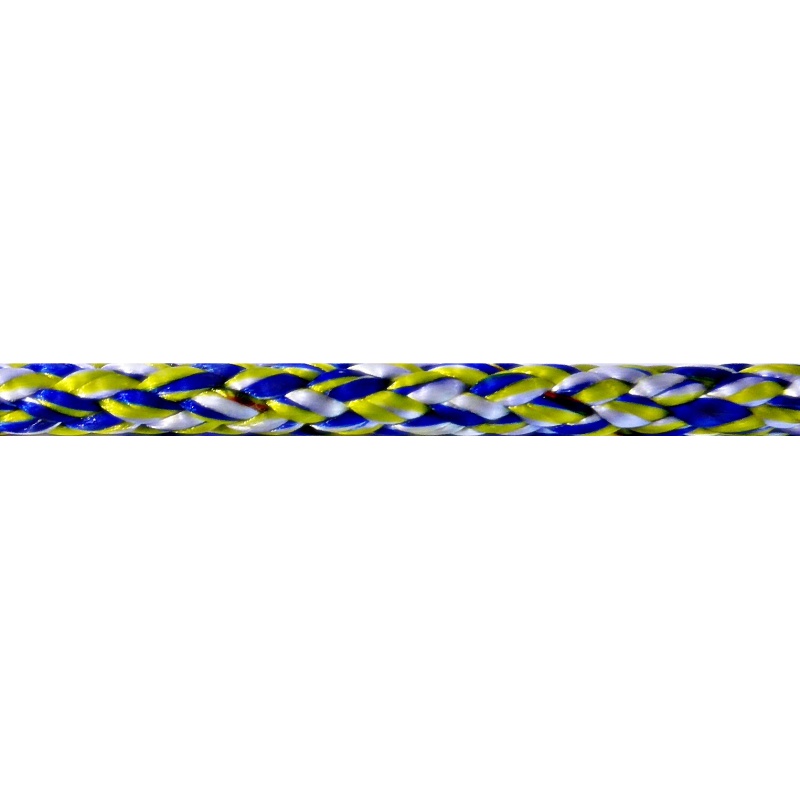

Single braid rope, 8X2 Construction, combining Dyneema SK78 + PP Multifilament.
-
Advantages
- Soft handling
- Doesn´t absorbe water
-
Applications
- Main Sheets
- Jib Sheets
- Control lines
-
Technical Informations
Colors: Mix White+ 2 colors- White; Black;Blue;Red;Yellow; Green; Neon green.Diameters: Ø5mm-3/16” ; Ø6mm-1/4” and Ø7mm-9/16”
Diameter
Weight
Breaking Load
Elong % BL
mm
inches
ktex
Kg/100m
lbs/100ft
kgf
lbf
kN
20%
50%
5
3/16
114
11,4
7,7
693
1.528
6,8
1,60
2,92
6
1/4
194
19,4
13,0
1210
2.668
11,9
1,33
2,67
7
9/16
223
22,3
15,0
1400
1.600
13,7
1,64
3,22
Elongation at 10% of BL
0,80%
Elongation at 20% of BL
1,33%
Elongation at 30% of BL
1,77%
Elongation at 40% of BL
2,18%
Elongation at 50% of BL
2,67%
In accordance to ISO 10325:2018
