V-Cup

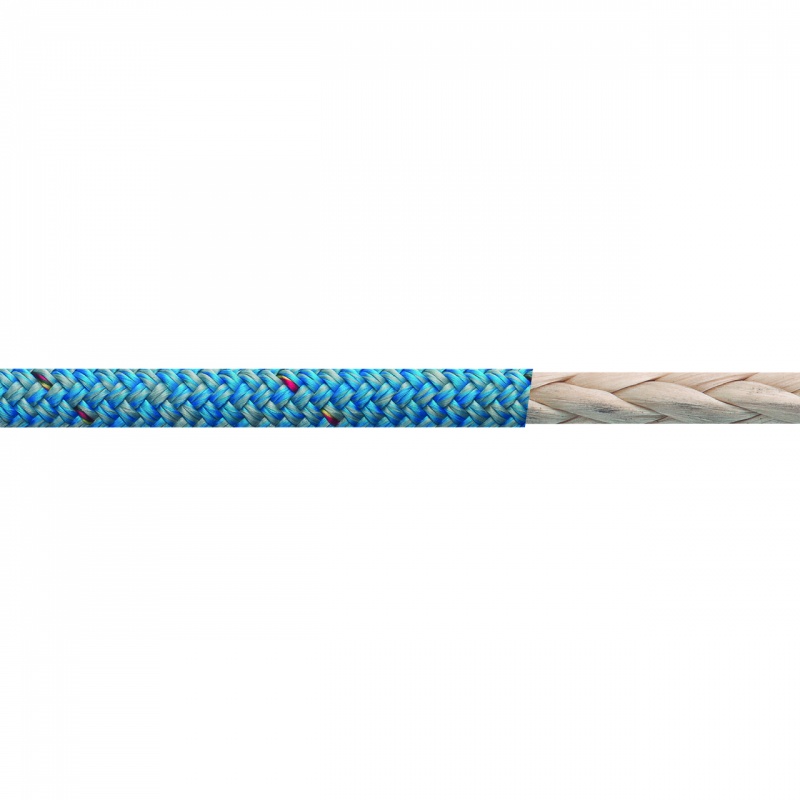

Double braid. 12 strand, coated VectranŽ core, 24 plait 100% HT Polyester cover
24 or 32 plait cover for + 14mm.
24 or 32 plait cover for + 14mm.
-
Advantages
- High load uses
- Low creep
- Ideal for halyards and guys.
-
Technical Informations
Colors: Mix Grey; Black, Royal blue, Red, Green, Orange and Yellow.Other colors by demand.Standard Diameters (mm/inches): 4 to 14mm / 5/32" to 9/16"
Diameter
Weight
Breaking Load
mm
inches
ktex
Kg/100m
lbs/100ft
kgf
lbf
kN
4
5/32
20,0
2,00
1,34
736
1 623
7,2
5
3/8
27,0
2,70
1,81
1 334
2 941
13,1
6
1/4
30,0
3,00
2,02
1 610
3 549
15,8
7
9/16
40,0
4,00
2,69
1 800
3 968
17,7
8
5/16
54,3
5,43
3,65
2 900
6 393
28,4
10
13/16
74,6
7,46
5,01
4 600
10 141
45,1
12
1/2
112,8
11,28
7,58
6 100
13 448
59,8
14
9/16
158,0
15,80
10,62
7 750
17 086
76,0
Elongation at 10% of BL
0,42%
Elongation at 20% of BL
0,76%
Elongation at 30% of BL
1,07%
Elongation at 40% of BL
1,36%
Elongation at 50% of BL
1,63%
*Testing according to BS EN 12562:1999
** More diameters on demand
