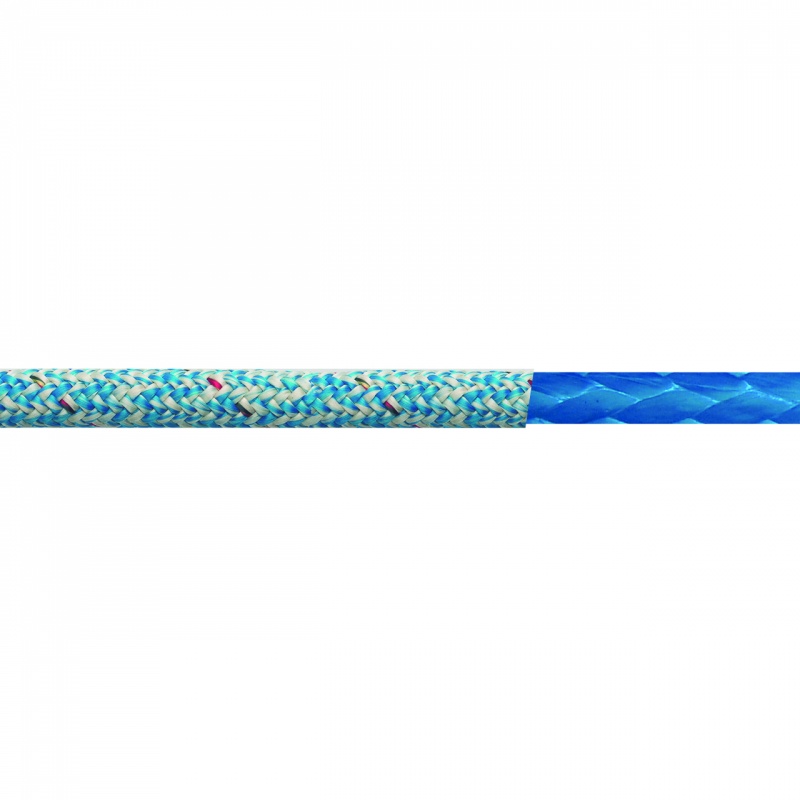

D-Cup 78 xtm kmix vt
Double braid.
12 strand, coated, Bio SK78® Extreme pre-stretched core + 24 plait , HT Polyester + Vectran® cover.
-
Advantages
- High load uses where ZERO elongation is needed
- Good grip on winches
- Ideal for Genoa sheets.
-
Technical Informations
Colors: Mix Beige Vectran; black, royal blue, red, green, orange and yellow.Other colors by demand.Standard Diameters (mm/inches): 6 to 12mm / 1/4" to 1/2"
Diameter
Weight
Breaking Load
mm
inches
ktex
Kg/100m
lbs/100ft
kgf
lbf
kN
6
1/4
27
2,7
1,8
2 553
5 628
25,0
7
9/32
38
3,8
2,6
3 850
8 488
37,8
8
5/16
55
5,5
3,7
4 200
9 259
41,2
9
3/8
59
5,9
4,0
5 800
12 787
56,9
10
13/16
73
7,3
4,9
6 800
14 991
66,7
11
7/16
85
8,5
5,7
7600
16 755
74,5
12
1/2
114
11,4
7,7
8 580
18 915
84,1
Elongation at 10% of BL
0,31%
Elongation at 20% of BL
0,53%
Elongation at 30% of BL
0,73%
Elongation at 40% of BL
0,92%
Elongation at 50% of BL
1,14%
* In accordance with the ISO 10325 2018
