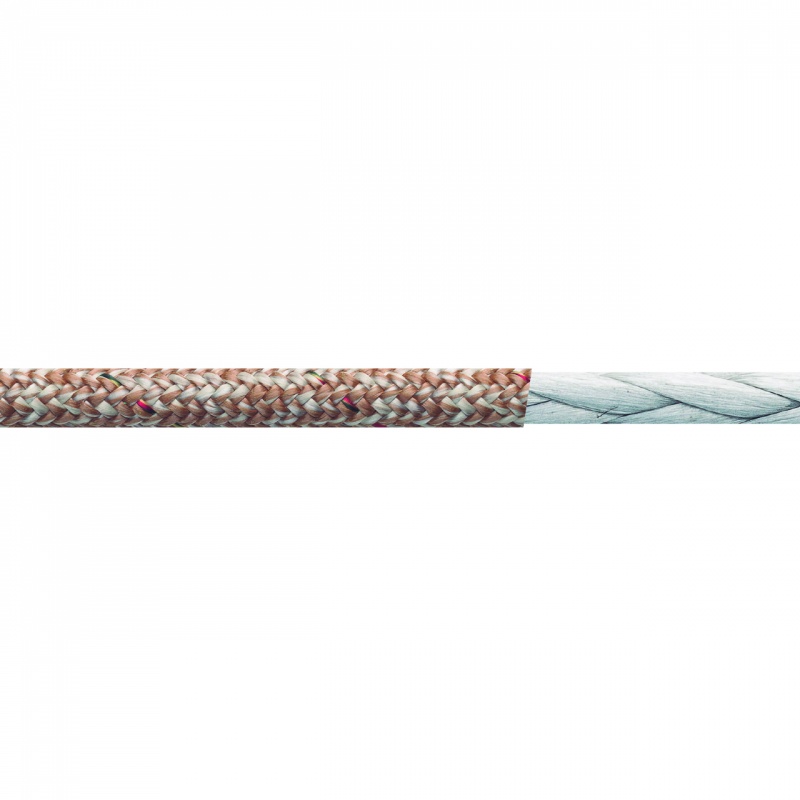

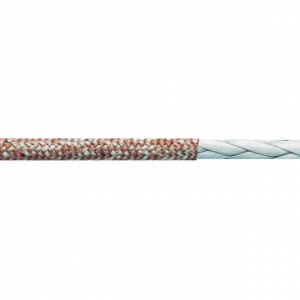

D-Cup 99 KMIX PBO
SK99®– the latest offering from DSM Dyneema®. SK99 has 20% strength advantage over SK78 and crucially retains the same elongation and creep characteristics as SK78 – outgunning SK90 on all levels! SK99 has an unmatched strength-to-weight ratio and has carved a niche for itself as the ultimate performance core material.
Construction:Double braid. 12 strand SK99® core + 24 plait , HT Polyester + PBO® cover.
24 or 32 plait cover for + 14mm.
Construction:Double braid. 12 strand SK99® core + 24 plait , HT Polyester + PBO® cover.
24 or 32 plait cover for + 14mm.
-
Advantages
- Super hight load uses
- Excellent abrasion resistence
- Ideal to Runners.
-
Technical Informations
Colors: Mix Orange(Zylon ®), black, royal blue, red, green, orange and yellow.Other colors by demand.Standard Diameters (mm/inches): 4 to 14mm / 5/32" to 9/16"
Diameter
Weight
Breaking Load
mm
inches
ktex
Kg/100m
lbs/100ft
kgf
lbf
kN
4
5/32
14
1,4
0,9
960
2 116
9,4
5
3/16
17,8
1,8
1,2
1 740
3 836
17,1
6
1/4
22,3
2,2
1,5
2 100
4 630
20,6
7
9/32
28,4
2,8
1,9
2 340
5 159
22,9
8
5/16
41
4,1
2,8
3 708
8 175
36,4
9
3/8
54
5,4
3,6
4 200
9 259
41,2
10
13/16
60
6,0
4,0
5 880
12 963
57,7
12
1/2
95
9,5
6,4
7 920
17 460
77,7
14
9/16
129
12,9
8,7
10 080
22 222
98,9
Elongation at 10% of BL
0,32%
Elongation at 20% of BL
0,56%
Elongation at 30% of BL
0,78%
Elongation at 40% of BL
0,98%
Elongation at 50% of BL
1,19%
* In accordance with the ISO 10325 2018
** More diameters on demand
