D-Core 78

D-Core 78

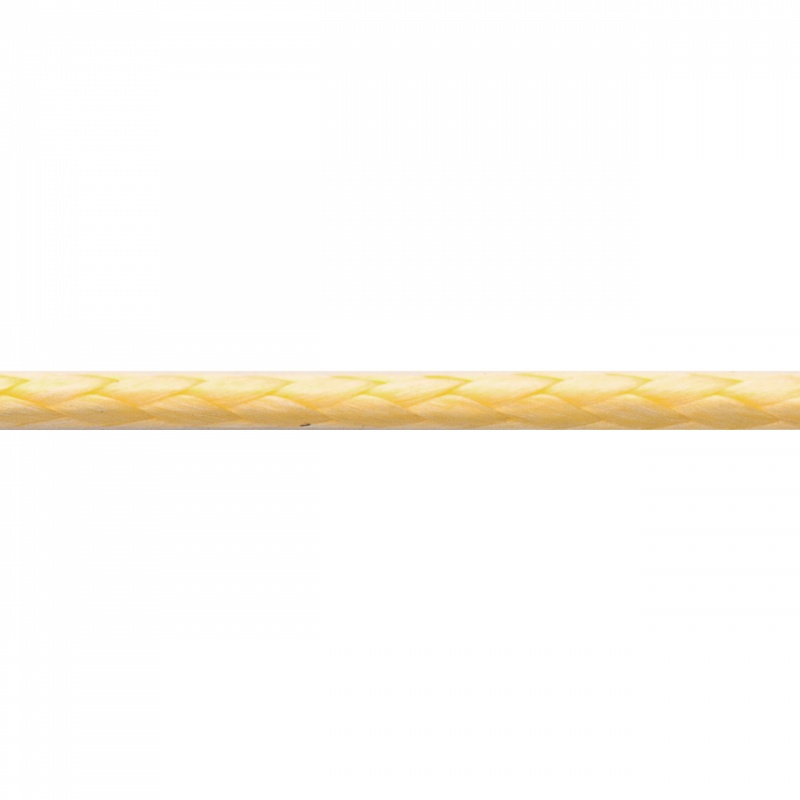

Single braid: 12 strand, coated Bio-Dyneema® Sk78 core.
  • Advantages
    • Lightweight
    • Excellent UV resistance
    • Ideal to use in, control lines and loops.
  • Technical Informations
    Colors: White, grey, Dark Gray, Yellow, blue, green, orange.

    Diameters (mm / inches): 2 to 6  /  5/64’’ to 1/4’’

    Diameter

    Weight

    Breaking Load

    mm

    inches

    ktex

    Kg/100m

    lbs/100ft

    kgf

    lbf

    kN

    2

    5/64

    2,4

    0,24

    0,16

    440

    970,02

    4,31

    2,5

    7/64

    3,7

    0,4

    0,2

    608

    1 340

    6,0

    3

    1/8

    5

    0,5

    0,3

    972

    2 143

    9,5

    4

      5/32

    8,7

    0,9

    0,6

    1 631

    3 596

    16,0

    5

    3/16

    16

    1,6

    1,1

    3 312

    7 302

    32,5

    6

     1/4

    20,8

    2,1

    1,4

    4 084

    9 004

    40,1

    Elongation at 10% of BL

    0.43%

    Elongation at 20% of BL

    0,70%

    Elongation at 30% of BL

    1,00%

    Elongation at 40% of BL

    1,26%

    Elongation at 50% of BL

    1,50%

    * In accordance with the ISO 10325 2018

    ** More diameters by request
