D-Core 78

D-Core 78

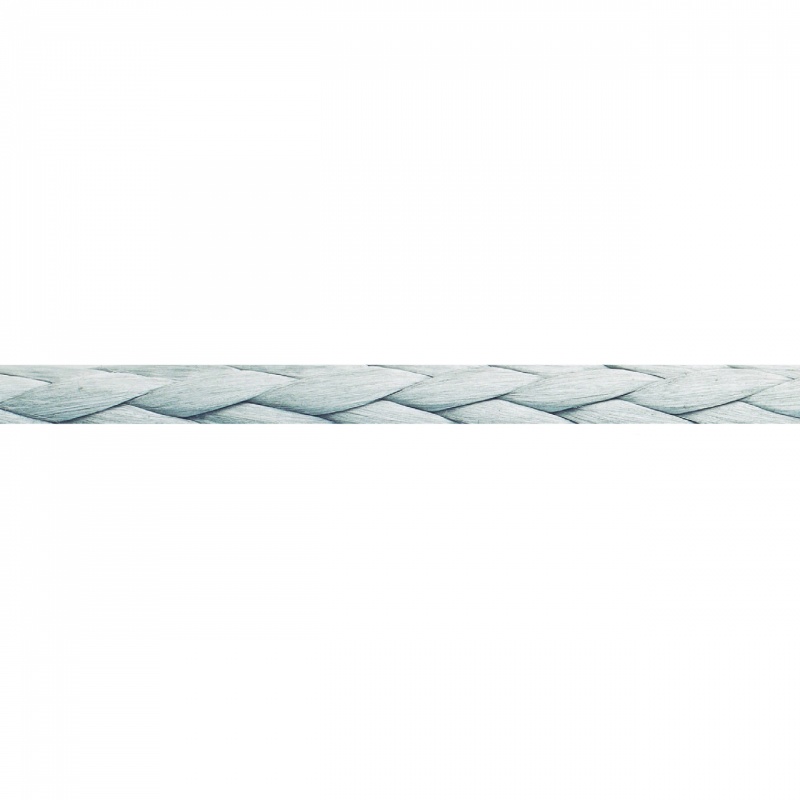

Single braid: 12 strand, coated DyneemaŽ Sk78 core.
  • Advantages
    • Lightweight
    • Excellent UV resistance.
  • Applications
    • Clew, head and Tack Loops.
    • Leech line, Code 0 /Gennaker Luffline.
  • Technical Informations
    Colors: White, Grey, Black, Red, Green, Yellow and Orange.

    Diameters (mm / inches): 2 to 4mm  /  5/64" to 5/32"


    Diameter

    Weight

    Breaking Load

    mm

    inches

    ktex

    Kg/120m

    lbs/100ft

    kgf

    lbf

    kN

    2

    `5/64

    2,4

    0,24

    0,16

    440

    970,02

    4,31

    2,5

    7/64

    3,7

    0,4

    0,2

    608

    1 340

    6,0

    3

    1/8

    5

    0,5

    0,3

    972

    2 143

    9,5

    4

      5/32

    8,7

    0,9

    0,6

    1 631

    3 596

    16,0
  • Downloads
    D Core 78 (163.32 KB)
