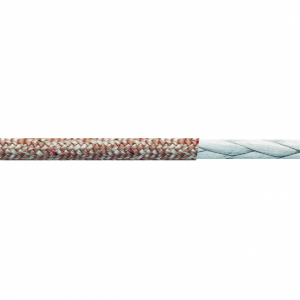

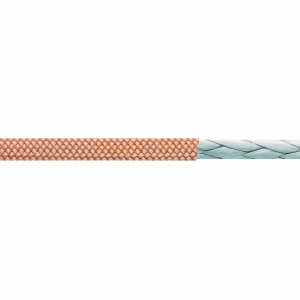

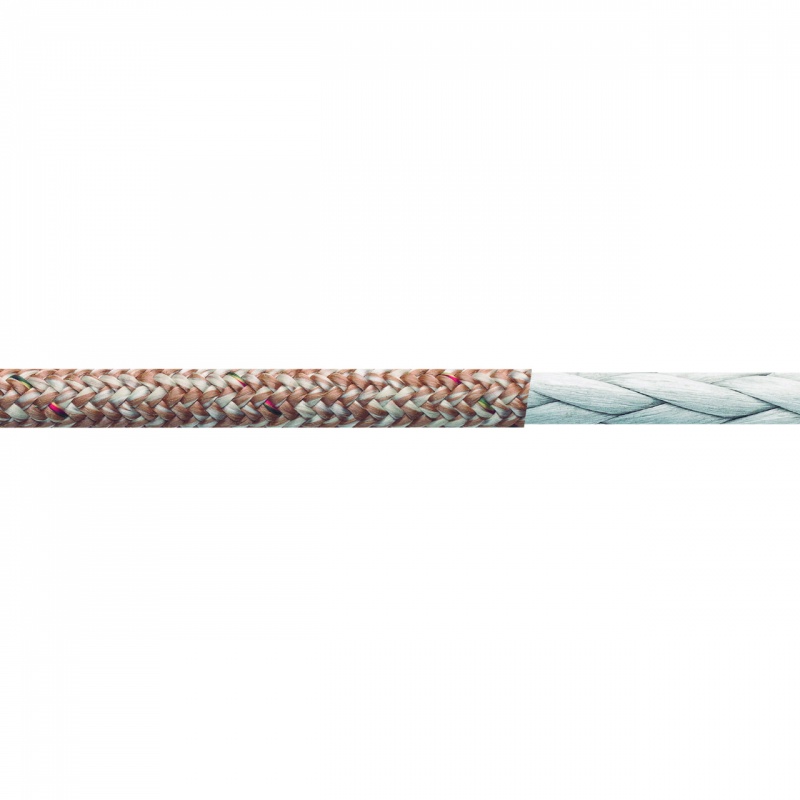

D-Cup 78 PBO/VT
Double braid.
12 strand, coated, Bio SK78® core + 24 plait , PBO® + Vectran® + Cordura® cover.
24 or 32 plait cover for + 14mm.
24 or 32 plait cover for + 14mm.
-
Advantages
- High load uses
- Strong abrasion resistance
- Ideal for Gennaker sheets.
-
Technical Informations
Colors: Mix Orange Zylon® + Beige Vectran® + White Cordura®Standard Diameters (mm/inches): 6 to 14mm / 1/2" to 9/16"
Diameter
Weight
Breaking Load
mm
inches
ktex
Kg/100m
lbs/100ft
kgf
lbf
kN
6
1/4
22,3
2,23
1,50
1 750
3 858
17,2
7
9/16
34,0
3,40
2,28
2 400
5 291
23,5
8
5/16
41,0
4,10
2,76
3 090
6 812
30,3
9
3/8
53,4
5,34
3,59
4 120
9 083
40,4
10
13/16
60,0
6,00
4,03
4 900
10 802
48,1
11
7/16
78,9
7,89
5,30
5 593
12 330
54,8
12
1/2
95,0
9,50
6,38
6 600
14 550
64,7
14
9/16
129,0
12,90
8,67
8 400
18 519
82,4
Elongation at 10% of BL
0,30%
Elongation at 20% of BL
0,60%
Elongation at 30% of BL
0,80%
Elongation at 40% of BL
1,00%
Elongation at 50% of BL
1,20%
* In accordance with the ISO 10325 2018
** More diameters by request
