D-Cup 78 Kmix KV

D-Cup 78 Kmix KV

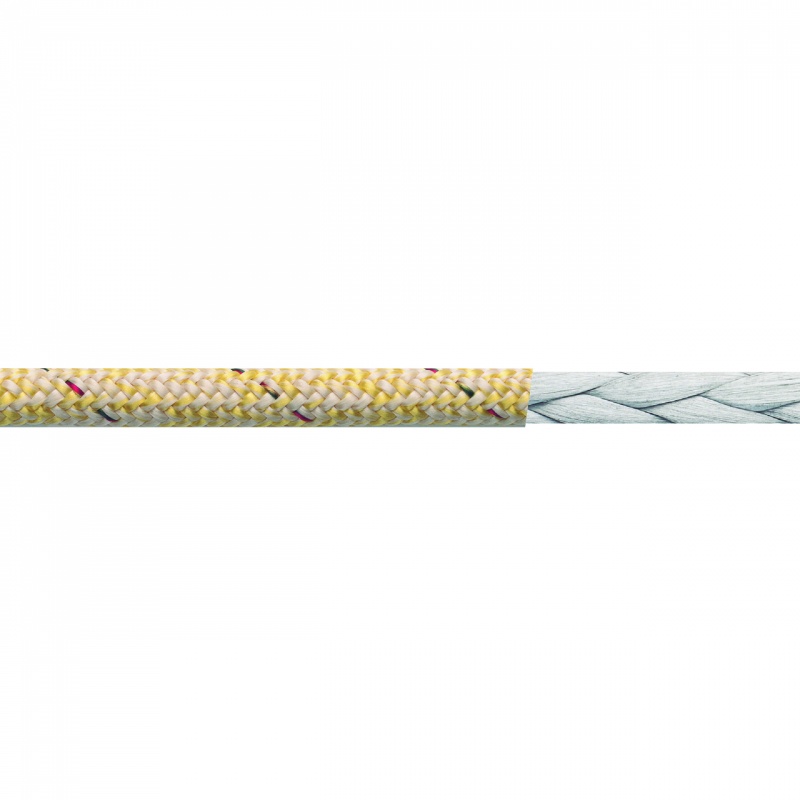

Double braid. 12 strand, coated, bio SK78® core + 24 plait , HT Polyester + Kevlar® cover.
24 or 32 plait cover for + 14mm.
  • Advantages
    • Hight load uses
    • Excellent grip on winches
    • Ideal for Genoa sheets.
  • Technical Informations
    Colors: Mix Gold Kevlar + Polyester in; black, royal blue, red, green, orange and yellow.
    Other colors by demand.

    Standard Diameters (mm/inches): 6 to 14mm / 1/2" to 9/16"

    Diameter

    Weight

    Breaking Load

    mm

    inches

    ktex

    Kg/100m

    lbs/100ft

    kgf

    lbf

    kN

    6

     1/4

    22,3

    2,23

    1,50

    1 750

    3 858

    17,2

    7

      9/16

    34,0

    3,40

    2,28

    2 400

    5 291

    23,5

    8

     5/16

    41,0

    4,10

    2,76

    3 090

    6 812

    30,3

    9

     3/8

    53,4

    5,34

    3,59

    4 120

    9 083

    40,4

    10

     13/16

    60,0

    6,00

    4,03

    4 900

    10 802

    48,1

    11

     7/16

    78,9

    7,89

    5,30

    5 593

    12 330

    54,8

    12

    1/2

    95,0

    9,50

    6,38

    6 600

    14 550

    64,7

    14

    9/16

    129,0

    12,90

    8,67

    8 400

    18 519

    82,4

    Elongation at 10% of BL

    0,30%

    Elongation at 20% of BL

    0,60%

    Elongation at 30% of BL

    0,80%

    Elongation at 40% of BL

    1,00%

    Elongation at 50% of BL

    1,20%

    * In accordance with the ISO 10325 2018

    ** More diameters by request
